The Systemizing Solution Supplier of Cable & Connector
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LYCN |
| Certification: | UL/SGS/ROHS |
| Model Number: | 2332 |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiation |
| Packaging Details: | TRAY/TUBE/REEL |
| Delivery Time: | 26-31 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000K pcs |
| Tail & Mounting Style: | 180° | DIP Spacing: | Double Row |
|---|---|---|---|
| Terminal Type: | U Type | Maximum Insertion Force: | 0.2 KGF |
| Minimum Pull Force: | 0.06 KGF | Insulator Material: | Standard: PA9T |

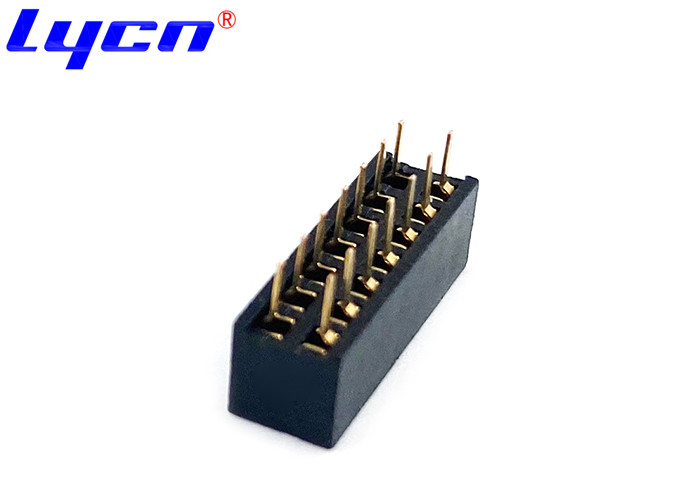

1.27mm Pitch Female PCB Header Height 3.4mm With Minimum Holding Force 0.4KGF
Product Application
Wide Application: All of our products can be widely used in electronics, electrical appliances, instrument connection device, which mainly plays the role of a current or signal transmission.
Since it is not exactly same that the specifications is used by different electronic products, female header connector come in many sizes. According to the standard product classification of LYCN: Pitch of female header can be roughly divided into 2.54mm, 2.00mm, 1.27mm and 1.00mm (other special pitch can also be customized ).
The number of rows: There are single row, double row, three row, etc. At the same time to match the use of the corresponding pin header, can be customized with different sizes of plastic height.
Why choose us
1.Timely delivery;
2.One-stop shopping;
3.Competitive price and High quality;
Specification
| 1. Insulator Material | PA9T+30%GF UL94V-0 |
| 2. Degree of heat-resistant | 275°C |
| 3. Hardness | 190HV-220HV |
| 4. Contact Plating |
AU over Ni |
| 5. Gender | Female |
| 6. Sample | 10-20pcs Free samples |
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2004, sell to Southern Europe(5%), Western Europe(10%), Eastern Asia(50%), Mid East(5%), Southeast Asia(10%), Eastern Europe(5%), South America(5%), North America(10%). There are total about 101-200 people in our office.
2. Can you help us purchase other products in China?
Yes. We can provide this service! We have lots of customers need such service and we know many good suppliers in China. We hope we can use our own experiences and team to help you.
3. How can I be your agent or dealer?
Thanks for trusting LYCN ELECTRONIC products! Send us more information about you or your compan as detailed as possible. We will review your information carefully and reply within 7 working days!
