| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LYCN |
| Certification: | ROHS/UL/SGS |
| Model Number: | Female header |
| Minimum Order Quantity: | 1000PCS |
| Price: | Discussible |
| Packaging Details: | TRAY/TUBE |
| Delivery Time: | 17-22 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000000Kpcs |
| Current Rating: | 2.0AMP | Contact Resistance: | 30mΩ Max |
|---|---|---|---|
| Insulation Resustance: | 1000mΩ Min | Withstand Voltage: | 500V AC/MINUTE |
| Operation Temperature: | ﹣40℃ To +105℃ | Contact Material: | Copper Alloy |
| High Light: | 2.0 AMP Female Header Connector,DIP Female Header Connector,DIP 2mm Pitch Female Header |
||

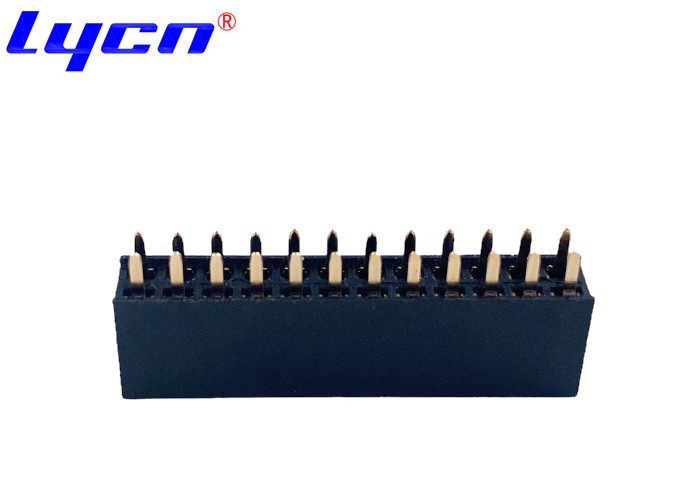

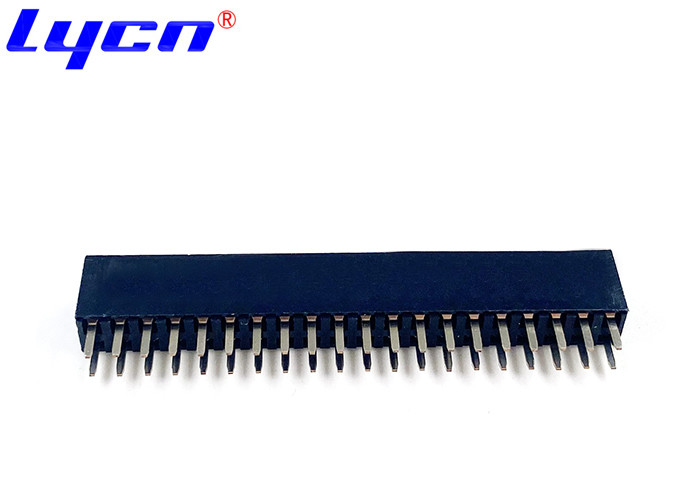

2.0mm Pitch Female Header Connector Height 4.3mm Current Rating 2.0 AMP
Products Application
Wide Appliction:All of our prodcuts can be widely used in electronics, electrical appliances, instrument connection device, which mainly plays the role of a current or signal transmission.
PCB Connectors are known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. There are also some other names for PCB connectors: Male PCB Connectors usually referred to Pin Headers, as they are simply rows of pins, while Female PCB Connectors named as Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.
Generally, female headers with suited pin headers are used to finish created modules in electronic industry.As below you can find some of scope of application.
Why choose us
1.Manufacture and trade integration,13 years export experience, 17 year manufacture experience;
2.One-stop shopping;
3.Competitive price and High quality;
Specification
| Contact Plating | Gold or Tin over 50μ Ni |
| Insulation Material | LCP |
| Degree of Heat-Resistant | 280°C+5°C/280°C-5°C |
| Time of Heat-Resistant | 210S |
| Terminal Type | U Type Terminal |
| Contact Material | Phosphor Copper |
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2004, sell to Southern Europe(5%), Western Europe(10%), Eastern Asia(50%), Mid East(5%), Southeast Asia(10%), Eastern Europe(5%), South America(5%), North America(10%). There are total about 101-200 people in our office.
2. What services can we provide?
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, MoneyGram, Western Union;
Language Spoken: English, Chinese
3. What is your MOQ?
The Min. order quantity is 1,000pcs, the quantity depend on the item that customers need
