The Systemizing Solution Supplier of Cable & Connector
| Place of Origin: | China |
|---|---|
| Brand Name: | LYCN |
| Certification: | ROHS/UL/SGS |
| Model Number: | 2241 |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiable |
| Packaging Details: | TRAY/TUBE |
| Delivery Time: | 25-30 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 6000000Kpcs |
| Current Rating: | 2.0 AMP | Insulator Material: | PA9T (UL94V-0) |
|---|---|---|---|
| Insulation Resustance: | 1000mΩ Min | Withstand Voltage: | 500V AC/MINUTE |
| Operation Temperature: | ﹣40℃ To +105℃ | Contact Material: | Copper Alloy |
| High Light: | Contact Resistance Female Header Connector,30mΩ Female Header Connector |
||

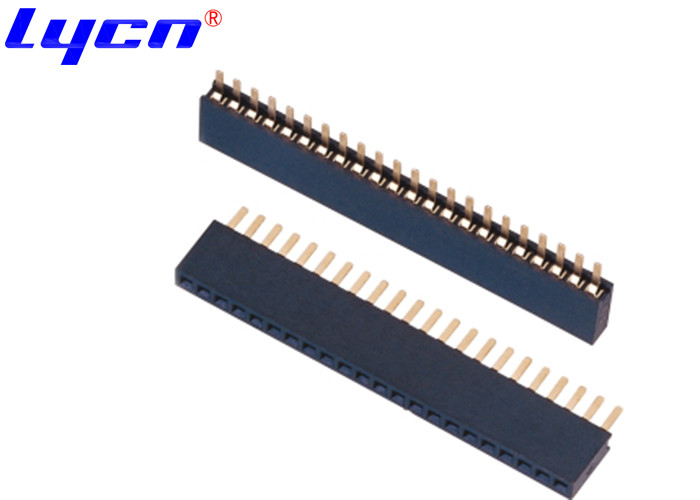

2.0mm Pitch Single Row Female Header Connector Contact Resistance 30mΩ Max
Products Application
Female Header, a type of connector, is a universal connection device. It is widely used in electronics, electrical appliances and instruments, which is mainly playing the role of current or signal transmission. Pin header can be used with it to form a board-to-board connection.Since it is not exactly same that the specifications is used by different electronic products, female header connector come in many sizes. According to the standard product classification of LYCN: Pitch of female header can be roughly divided into 2.54mm, 2.00mm, 1.27mm and 1.00mm (other special pitch can also be customized ) ;
Part of applications:
Digital Camera, Mobile phone, Computer Mainframe, LED display, Household Electric Appliances, etc
Why choose us
1.Manufacture and trade integration,13 years export experience, 17 year manufacture experience;
2. Customized Packaging
All the products are available for customized packaging according to your demand.
3. Fast Delivery
Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.
Specification
| Contact Plating | Gold or Tin over 50μ Ni |
| Insulation Material | Polyester |
| Degree of Heat-Resistant | 275°C+5°C/275°C-5°C |
| Time of Heat-Resistant | 180S |
| Terminal Type | U Type Terminal |
| Contact Material | Phosphor Copper |
Drawing
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2004, sell to Southern Europe(5%), Western Europe(10%), Eastern Asia(50%), Mid East(5%), Southeast Asia(10%), Eastern Europe(5%), South America(5%), North America(10%). There are total about 101-200 people in our office.
2. What services can we provide?
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, CNY;
Accepted Payment Type: T/T, MoneyGram, Western Union;
Language Spoken: English, Chinese
3. What is your MOQ?
The Min. order quantity is 1,000pcs, the quantity depend on the item that customers need
