The Systemizing Solution Supplier of Cable & Connector
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | LYCN |
| Certification: | UL/SGS/ROHS |
| Model Number: | 3010XXS |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiation |
| Packaging Details: | Tray/Tube |
| Delivery Time: | 26-31 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000K pcs |
| Tail & Mounting Style: | 180° Straight Dip, Add Plastic | Pitch: | 2.54mm |
|---|---|---|---|
| Current Rating: | 3.0 AMP | Port: | Shenzhen/Guangzhou/Hong Kong |
| Insulator Material: | PA9T Or PBT | Number Of Contacts: | 10 Pin-64 Pin |
| High Light: | PBT Box Header Connector,Black Box Header Connector,2.54mm Pitch Connector |
||

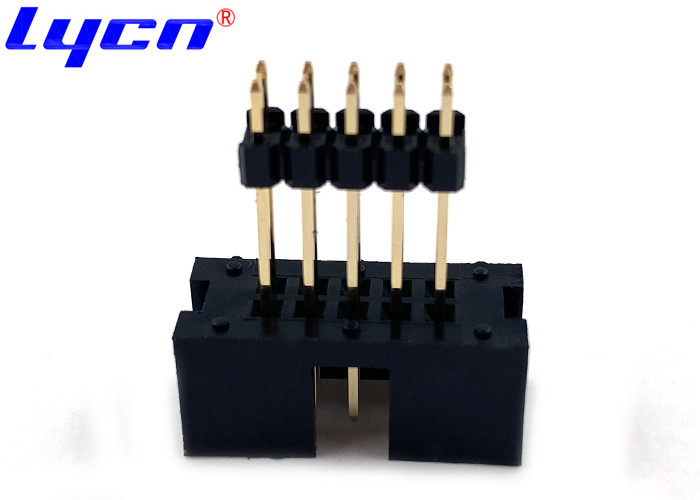

2.54mm Pitch Box Header Connector Straight PBT Black , Add Plastic
Product Application
Security and protection system, Intelligent home, Car anti-theft equipment, Video game controller, Card reader, Medical equipment, MODEM card, POS machine, Digital picture frame, Instrumentation, Electricity meter, Industrial camera, Electronic whiteboard, New energy vehicles, WAP and other communication equipment.
The box header connector is usually composed of a square plastic socket and a number of neatly arranged square pins. The difference between the box header connector and the ejector header connector is that the connector removes the buckles on both sides.
After welding the box header connector on the PCB board, it can be connected with the IDC line of the corresponding specifications to form the circuit connection mode with other circuits. It usually used to transmit control signals and weak currents.
Why choose us
1.Manufacture and trade integration,13 years export experience, 17 year manufacture experience;
2.One-stop shopping;
3.Competitive price and High quality;
Specification:
| 1. Insulation Resistance | 1000mΩ Min |
| 2. Contact Resistance | 20mΩ Max |
| 3. Withstand Voltage | 1000V AC/DC |
| 4. Contact Plating |
AU over Ni |
| 5. Operation Temperature | ﹣40℃ to +105℃ |
| 6. Sample | 10-20pcs Free samples |
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2004, sell to Southern Europe(5%), Western Europe(10%), Eastern Asia(50%), Mid East(5%), Southeast Asia(10%), Eastern Europe(5%), South America(5%), North America(10%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always do pre-production sample before mass production;
Always do final Inspection before shipment;
3. What kinds of product packing you can provide?
We will choose the most suitatble packing method to protect products well. Customers also could customize their packages.
