| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LYCN |
| Certification: | UL/SGS/ROHS |
| Model Number: | 392L |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiate |
| Packaging Details: | Tray/Tube |
| Delivery Time: | 26-31 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000pcs |
| Tail & Mounting Style: | DIP 180° | Withstand Voltage: | 600 V AV/Minute |
|---|---|---|---|
| Current Rating: | 2.0 AMP | Contact Resistance: | 20mΩ Max |
| Insulation Resistance: | 1000mΩ Min | Operation Temperature: | -40°C To +105°C |
| Highlight: | Ejector 2.0 Mm Pitch Header,Long Latch 2.0 Mm Pitch Header |
||

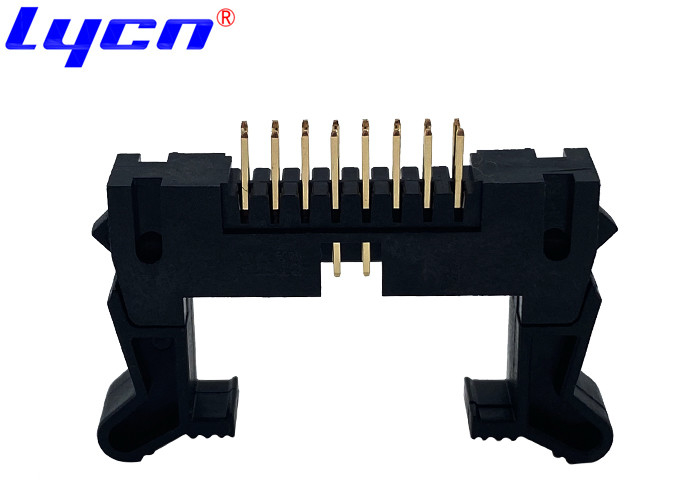

2.0mm Pitch Ejector Long Latch Header PBT Black ROHS 94V-0 AU Or Sn over Ni
Product Application
The difference between the box header connectors and the ejector header connectors is that there are two more buckles on both sides. According to the demand, there are three commonly used specifications of the outer size of the ejector header connector: 1.27mm pitch, 2.0mm pitch, 2.54mm pitch.
The diameter of the square row of needles used varies according to the spacing. The bottom contact surface with PCB board can be designed for SMT SMT type or DIP direct insert 180 degrees.
Application: After welding the ejector header connector on the PCB board, connect the IDC cable with the corresponding specifications. It will form a new circuit connection with another circuit, which usually used to transmit control signals and weak currents.
Why choose us
1. Samples for free;
2. Qualified service-oriented staff;
3. Customization;
Specification
| 1. Contact Plating | Gold or Tin over Ni |
| 2. Insulator Material | PBT/PA6T/PA66/PA9T/LCP |
| 3. Pitch | 2.00 mm |
| 4. Latch |
Long Latch |
| 5. Color | Black |
| 6. Contact Material | Copper Alloy |
FAQ
1. How about the lead time?
It would take 4~5 days for the samples. Lead time for mass production will take 2~3weeks, which depends on the items and the quantity that customers order. If customers need items urgently, we will try our best to meet your lead time.
2. How about the terms of payment?
Normally, T/T in Advance or before shipment. Payment can negotiated when we get a stable relationship.
3. How do you make our business long-term and good relationship?
We provide high quality products & excellent service to all of our customers and we have rich experience.
