| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LYCN |
| Certification: | UL/SGS/ROHS |
| Model Number: | 393S |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiation |
| Packaging Details: | Tray/Tube |
| Delivery Time: | 26-31 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000pcs |
| Tail & Mounting Style: | Straight DIP 180° | Withstand Voltage: | 500 V AV/Minute |
|---|---|---|---|
| Current Rating: | 1.0 AMP | Contact Resistance: | 20mΩ Max |
| Insulation Resistance: | 1000mΩ Min | Operation Temperature: | -40°C To +105°C |
| High Light: | DIP Ejector Header,180 Degree Ejector Header,1.27mm Horn Pin Connector |
||

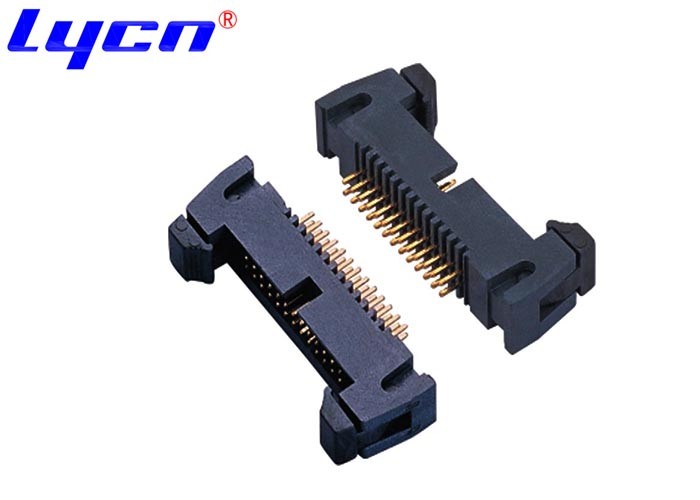

1.27 Spacing Plastic DIP 180° Ejector Header Horn Connector 1000mΩ Min Brass
Product Application
The difference between the box header connectors and the ejector header connectors is that there are two more buckles on both sides. According to the demand, there are three commonly used specifications of the outer size of the ejector header connector: 1.27mm pitch, 2.0mm pitch, 2.54mm pitch.
The diameter of the square row of needles used varies according to the spacing. The bottom contact surface with PCB board can be designed for SMT SMT type or DIP direct insert 180 degrees.
Application: After welding the ejector header connector on the PCB board, connect the IDC cable with the corresponding specifications. It will form a new circuit connection with another circuit, which usually used to transmit control signals and weak currents.
Why choose us
1. High-Quality Guarantee
LYCN has been focusing on improving the Quality Control Systems, aiming at providing high-quality products that fit ISO9001 Certificate for years.
2. Customized Packaging
All the products are available for customized packaging according to your demand.
3. Experience advantage
We own a professional team of more than 500 people, 15 years of industry experience and professional team equipped. We are a collection of design, development, production, sales as a whole part of the professional manufacturers. Quality, reliable products and satisfactory service are provided for our customers by us.
Specification
| 1. Contact Plating | Gold or Tin over Ni |
| 2. Insulator Material | PBT/PA6T/PA66/PA9T/LCP |
| 3. Pitch | 1.27 mm |
| 4. Latch |
Short Latch |
| 5. Color | Black |
| 6. Contact Material | Copper Alloy |
FAQ
1. Can I get some samples?
Yes, sample order is available for the quantity check and market test. You can contact with us for some free sample with freight collect.
2.What's the delivery time?
The delivery time will depends on the quantity that you need, which usually takes 7-14 days.
3. How to get the price faster?
Contact with us, give us your requirements, of course it's better that you can give picture or drawing or original No.
