| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LYCN |
| Certification: | UL/SGS/ROHS |
| Model Number: | 392L |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiation |
| Packaging Details: | Tray/Tube |
| Delivery Time: | 26-31 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000pcs |
| Tail & Mounting Style: | DIP 180° | Withstand Voltage: | 600 V AV/Minute |
|---|---|---|---|
| Current Rating: | 2.0 AMP | Contact Resistance: | 20mΩ Max |
| Insulation Resistance: | 1000mΩ Min | Operation Temperature: | -40°C To +105°C |
| Highlight: | 1000mΩ Ejector Header,2.0 mm Ejector Header,Short Latch SMT Wire To Board Connector |
||

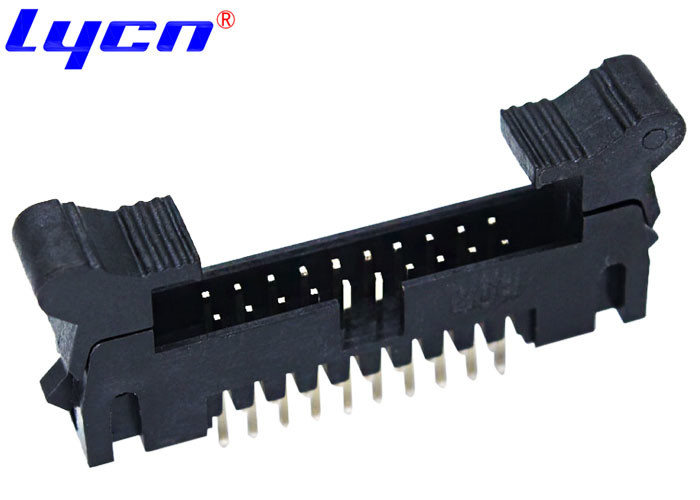

2.0mm Straight Latch Header Ejector Wire To Board Connector LCP For PCB Microwave
Product Application
The difference between the box header connectors and the ejector header connectors is that there are two more buckles on both sides. According to the demand, there are three commonly used specifications of the outer size of the ejector header connector: 1.27mm pitch, 2.0mm pitch, 2.54mm pitch.
The diameter of the square row of needles used varies according to the spacing. The bottom contact surface with PCB board can be designed for SMT SMT type or DIP direct insert 180 degrees.
Application: After welding the ejector header connector on the PCB board, connect the IDC cable with the corresponding specifications. It will form a new circuit connection with another circuit, which usually used to transmit control signals and weak currents.
Why choose us
1. Competitive Price
We have a whole set production process which include electroplating, stamping, injection molding, assembly to ensure our competitive price.
2. Fast Delivery
Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.
3. Equipment advantage
Our factory occupied area is about 15000 square meters. There are more than 300 sets of precision connector production equipment, 16 sets of precision plastic injection machine, 80 sets of precision high-speed punch, at least 100 sets of various plastic models and more than 200 sets of hardware terminal models. We have advanced technology and equipment to guarantee product quality !
Specification
| 1. Contact Plating | Gold or Tin over Ni |
| 2. Insulator Material | PBT/PA6T/PA66/PA9T/LCP |
| 3. Pitch | 2.0 mm |
| 4. Latch |
Short Latch |
| 5. Color | Black |
| 6. Contact Material | Copper Alloy |
FAQ
18. How to get the price faster?
Contact with us, give us your requirements, of course it's better that you can give picture or drawing or original No.
19. How To Order?
1. Please tell us what model and quantity you need; 2. Then we will make a PI for you to confirm the order details; 3. When we confirmed everything, can arrange the payment; 4. Finally we deliver the goods within the stipulated time.
20. When can we get the reply?
Any inquiries will be replied within 24 hours.
