The Systemizing Solution Supplier of Cable & Connector
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LYCN |
| Certification: | UL/SGS/ROHS |
| Model Number: | 391S/391L |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiation |
| Packaging Details: | Tray/Tube |
| Delivery Time: | 26-31 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000pcs |
| Tail & Mounting Style: | DIP 180°/ Right Angle Type | Withstand Voltage: | 1000 V AV/Minute |
|---|---|---|---|
| Current Rating: | 3.0 AMP | Contact Resistance: | 20mΩ Max |
| Insulation Resistance: | 1000mΩ Min | Operation Temperature: | -40°C To +105°C |
| High Light: | 2.0 AMP Ejector Header,2.54mm Pitch Ejector Header |
||

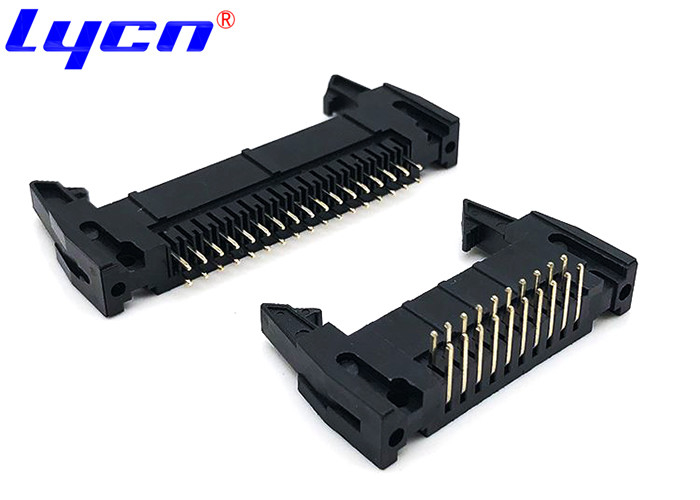

2.54mm Latch Ejector Header Connector Current Rating 2.0 AMP DIP 180° / 90°
Product Application
The difference between the box header connectors and the ejector header connectors is that there are two more buckles on both sides. According to the demand, there are three commonly used specifications of the outer size of the ejector header connector: 1.27mm pitch, 2.0mm pitch, 2.54mm pitch.
The diameter of the square row of needles used varies according to the spacing. The bottom contact surface with PCB board can be designed for SMT SMT type or DIP direct insert 180 degrees.
Application: After welding the ejector header connector on the PCB board, connect the IDC cable with the corresponding specifications. It will form a new circuit connection with another circuit, which usually used to transmit control signals and weak currents.
Why choose us
1. Competitive Price
We have a whole set production process which include electroplating, stamping, injection molding, assembly to ensure our competitive price.
2. Fast Delivery
Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.
3. Equipment advantage
Our factory occupied area is about 15000 square meters. There are more than 300 sets of precision connector production equipment, 16 sets of precision plastic injection machine, 80 sets of precision high-speed punch, at least 100 sets of various plastic models and more than 200 sets of hardware terminal models. We have advanced technology and equipment to guarantee product quality !
Specification
| 1. Contact Plating | Gold or Tin over Ni |
| 2. Insulator Material | PBT/PA6T/PA66/PA9T/LCP |
| 3. Pitch | 2.54 mm |
| 4. Latch |
Long/Short Latch |
| 5. Color | Black |
| 6. Contact Material | Copper Alloy |
FAQ
1. How about the terms of payment?
Normally, T/T in Advance or before shipment. Payment can negotiated when we get a stable relationship.
2. How do you make our business long-term and good relationship?
We provide high quality products & excellent service to all of our customers and we have rich experience.
3. When can I receive your quotation or reply?
Within 2 hours! If you submit quote request on our working time 9:00 a.m.to 18:00pm, we always can reply on Phone within 2 hours. You can get reply within 24 hours, if you asking on weekend or holiday. If you are urgent ,welcome to call us or talk online via Sales manager/Skype/ Wechat etc. Let's make waiting be short!!
