The Systemizing Solution Supplier of Cable & Connector
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LYCN |
| Certification: | UL/SGS/ROHS |
| Model Number: | 391S/391L |
| Minimum Order Quantity: | 1000 PCS |
| Price: | Negotiation |
| Packaging Details: | Tray/Tube |
| Delivery Time: | 26-31 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000pcs |
| Tail & Mounting Style: | 180° Straight Dip | Withstand Voltage: | 1000 V AV/Minute |
|---|---|---|---|
| Current Rating: | 3.0 AMP | Contact Resistance: | 20mΩ Max |
| Insulation Resistance: | 1000mΩ Min | Operation Temperature: | -40°C To +105°C |
| High Light: | Ejector Latch Header,2.54mm Pitch Latch Header,Gold Flash 2mm Pitch Header |
||

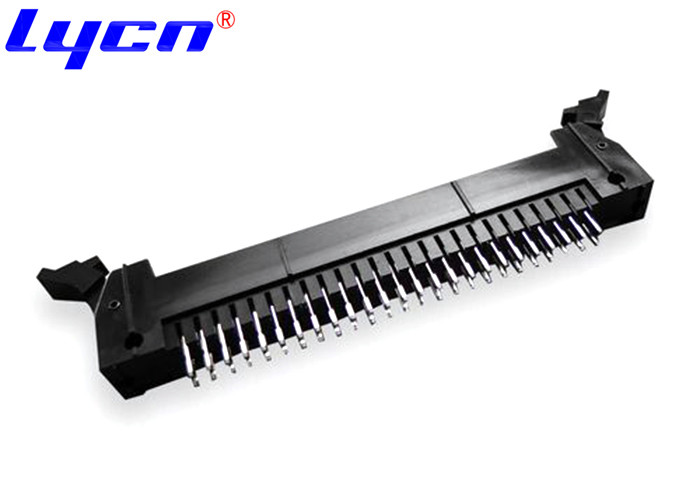

2.0mm 2.54mm Pitch Ejector Latch Header Straight Type PA9T Gold Flash 1000 V AV/Minute
Product Application
The difference between the box header connectors and the ejector header connectors is that there are two more buckles on both sides. According to the demand, there are three commonly used specifications of the outer size of the ejector header connector: 1.27mm pitch, 2.0mm pitch, 2.54mm pitch.
The diameter of the square row of needles used varies according to the spacing. The bottom contact surface with PCB board can be designed for SMT SMT type or DIP direct insert 180 degrees.
Application: After welding the ejector header connector on the PCB board, connect the IDC cable with the corresponding specifications. It will form a new circuit connection with another circuit, which usually used to transmit control signals and weak currents.
Why choose us
1. Competitive Price
We have a whole set production process which include electroplating, stamping, injection molding, assembly to ensure our competitive price.
2. Fast Delivery
Most efficient producing makes fast delivery, which would make sure of the lead time always ahead of your expectation.
3. Equipment advantage
Our factory occupied area is about 15000 square meters. There are more than 300 sets of precision connector production equipment, 16 sets of precision plastic injection machine, 80 sets of precision high-speed punch, at least 100 sets of various plastic models and more than 200 sets of hardware terminal models. We have advanced technology and equipment to guarantee product quality !
Specification
| 1. Contact Plating | Gold or Tin over Ni |
| 2. Insulator Material | PBT/PA6T/PA66/PA9T/LCP |
| 3. Pitch | 2.54 mm |
| 4. Latch |
Long/Short Latch |
| 5. Color | Black |
| 6. Contact Material | Copper Alloy |
FAQ
1. How many shipping ways can provide for option?
We usually use air freight to ensure timeliness. If you have long-term cooperation with freight companies, you can provide your account number to us. If not, we can arrange shipment. We can provide TNT, DHL, FEDEX, EMS, UPS door to door service. Good packing ensures safe transportation. More than 15 stable cooperative freight forwarding companies in major ports in China, to ensure safety and quality service! In addition, we will be responsible for the loss caused by the products at the time of delivery.
2. Can you help us purchase other products in China?
Yes. We can provide this service! We have lots of customers need such service and we know many good suppliers in China. We hope we can use our own experiences and team to help you.
3. How can I be your agent or dealer?
Thanks for trusting LYCN ELECTRONIC products! Send us more information about you or your company as detailed as possible. We will review your information carefully and reply within 7 working days!
