The Systemizing Solution Supplier of Cable & Connector
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | LYCN |
| Certification: | ROHS/UL/SGS/REACH |
| Model Number: | 123XX1 |
| Minimum Order Quantity: | 1000 PCS |
| Price: | USD |
| Packaging Details: | TRAY/TUBE |
| Delivery Time: | 25-35 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000Kpcs |
| Current Rating: | 1.0 AMP | Contact Resistance: | 10mΩ Max |
|---|---|---|---|
| Dielectric Strength: | Min 1000V RMS | Mechanical Life: | Min 500 Cycles |
| Sleeve: | Brass CuZn36Pb3(C36000) | Contact Clip(4 Finger): | BeCu(C17200) |
| Highlight: | 1.27 Mm Round PIN Header,Single Row Round PIN Header,1.27 Mm Pin Header Socket |
||

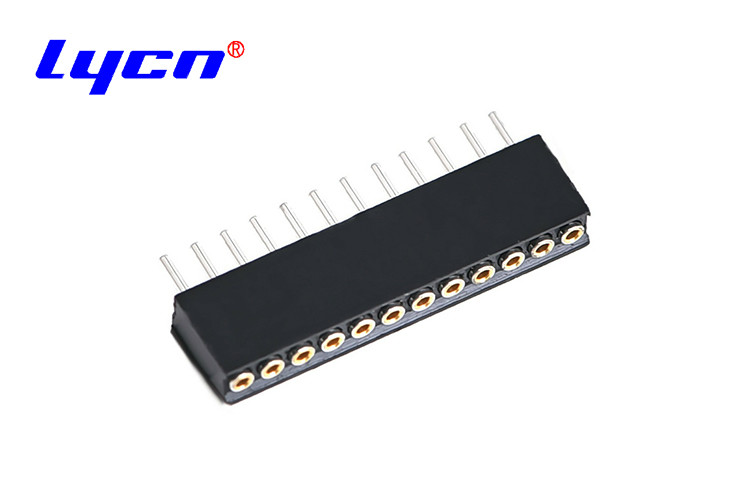

1.27 Mm Machined Female Round Pin Header Connector 180°DIP Single Row SIP Socket
Products Application
Wide Application: All of our products can be widely used in electronics, electrical appliances, instrument connection device, which mainly plays the role of a current or signal transmission.
Printed circuit board connectors are connecting systems used to transfer signals or power supplies from one PCB to another, or from another source built into the device to or from the PCB. Since PCBS are not hard-wired to each other, they can be assembled later in the production process, providing a simple design method for manufacturing.
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments:
Why choose us
1.Manufacture and trade integration,13 years export experience, 17 year manufacture experience;
2.One-stop shopping;
3.Competitive price and High quality;
Specification
| Insulator Material | PPS+30%GF(UL94V-0) |
| Contact Clip | Beryllium Copper (C17200) |
| Gender | Female |
| Mating Pin | ∅0.31 To ∅0.48mm |
| Withdrawal Forces | 0.2 N Typ. |
| Insertion Forces | 0.5 N typ |
FAQ
1. How To Order?
1. Please tell us what model and quantity you need; 2. Then we will make a PI for you to confirm the order details; 3. When we confirmed everything, can arrange the payment; 4. Finally we deliver the goods within the stipulated time.
2. When can we get the reply?
Any inquiries will be replied within 24 hours.
3. What's your payment terms?
T/T, Paypal, Western Union, Trade Assurance Order and etc. of course, other payment method can be negotiated.
