The Systemizing Solution Supplier of Cable & Connector
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | LYCN |
| Certification: | ROHS/UL/SGS |
| Model Number: | 2152 |
| Minimum Order Quantity: | 1KPCS |
| Price: | Negotiation |
| Packaging Details: | Tray/Tube |
| Delivery Time: | 21-31 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000Kpcs |
| Contact Material: | Copper Alloy | Withstand Voltage: | 1000V AC/Minute |
|---|---|---|---|
| Operation Temperature: | ﹣25℃ To +85℃ | Insulator Material: | LCP |
| Contact Resistance: | 20mΩ Max | Contact Plating: | Gold Or Tin Over Ni |
| High Light: | Single Row Header PCB Connector,Female Header PCB Connector,3.0AMP Female Header Connector |
||

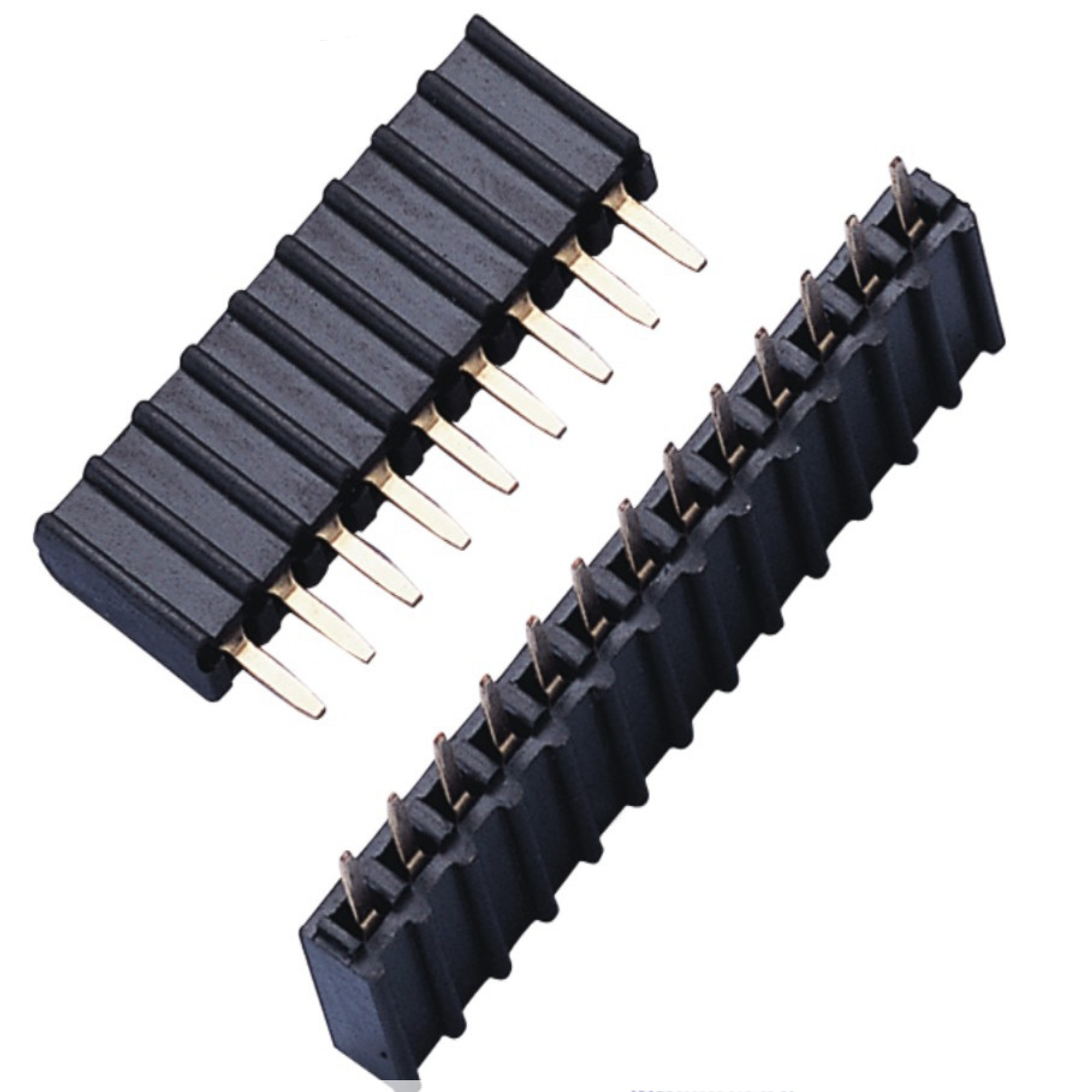

Single Row 3.0AMP PA6T Female Header PCB Connector 2.54mm Pitch
Product Application
Most our products can be used in Digital Camera, Mobile phone, Computer Mainframe, LED display, Household Electric Appliances, etc.
Female Header, a type of connector, is a universal connection device. It is widely used in electronics, electrical appliances and instruments, which is mainly playing the role of current or signal transmission. Pin header can be used with it to form a board-to-board connection.
Since it is not exactly same that the specifications is used by different electronic products, female header connector come in many sizes. According to the standard product classification of LYCN: Pitch of female header can be roughly divided into 2.54mm, 2.00mm, 1.27mm and 1.00mm (other special pitch can also be customized ) ;
Why choose us
1.Manufacture and trade integration,13 years export experience, 17 year manufacture experience;
2.One-stop shopping;
3.Competitive price and High quality;
4.Timely delivery;
5. Technical support;
Specification
| Current Rating | 3.0 AMP |
| Contact Resistance | 30 mΩ Max |
| Temperature Resistance | 180S |
| Insulation Resistance | 1000MΩ Min |
| Color | Black |
| Sample | Free |
FAQ
1. How to get the price faster?
Contact with us, give us your requirements, of course it's better that you can give picture or drawing or original No.
2. How To Order?
1. Please tell us what model and quantity you need; 2. Then we will make a PI for you to confirm the order details; 3. When we confirmed everything, can arrange the payment; 4. Finally we deliver the goods within the stipulated time.
3. When can we get the reply?
Any inquiries will be replied within 24 hours.
