The Systemizing Solution Supplier of Cable & Connector
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | LYCN |
| Certification: | ROHS Compliant/ UL |
| Model Number: | Machined Female header |
| Minimum Order Quantity: | 1000 PCS |
| Price: | USD |
| Packaging Details: | TRAY/TUBE |
| Delivery Time: | 25-35 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000Kpcs |
| Current Rating: | 3.0 AMP | Contact Resistance: | 10mΩ Max |
|---|---|---|---|
| Dielectric Strength: | Min 1000V RMS | Mechanical Life: | Min 500 Cycles |
| Sleeve: | Brass CuZn36Pb3(C36000) | Contact Clip(4 Finger): | BeCu(C17200) |
| High Light: | Single Row Straight PIN Header,2.54mm Pitch Straight PIN Header,PCB Circuit Board Pin Headers |
||

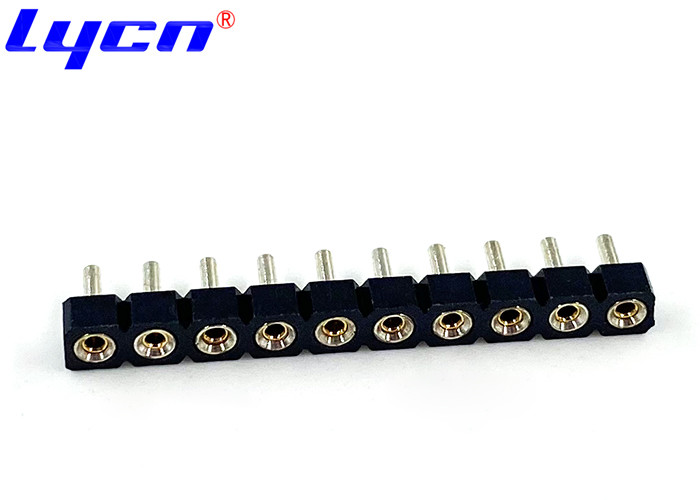

SIP Socket Straight Dip 180° 2.54mm Pitch Single Row Solder For PCB Board
Products Application
Female Socket Header, a type of connector, is a universal connection device. It is widely used in electronics, electrical appliances and instruments, which is mainly playing the role of current or signal transmission. Pin header can be used with it to form a board-to-board connection.
A female socket header connector usually forms a board-to-board connection with pins or a circuit board connection with an electronic harness terminal.
Female socket header connector is similar with female header connector. They have strong bearing force and high reliability, which can withstand considerable external forces. Their long service life is not easy to fall off PCB, which also meet different high current and high voltage.
Why choose us
1.Manufacture and trade integration,13 years export experience, 17 year manufacture experience;
2.One-stop shopping;
3.Competitive price and High quality;
Specification
| Insulator Material | PBT, PA6T, PA66, PA9T, LCP (UL94V-0) |
| Contact Clip | Beryllium Copper (C17200) |
| Gender | Female |
| Length | Custom |
| Withdrawal Forces | 1 N Typ. |
| Insertion Forces | 2 N typ |
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2004, sell to Southern Europe(5%), Western Europe(10%), Eastern Asia(50%), Mid East(5%), Southeast Asia(10%), Eastern Europe(5%), South America(5%), North America(10%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always do pre-production sample before mass production;
Always do final Inspection before shipment;
3. How many kinds of packing can we provide?
We will choose the most suitable packing method to protect products well. Customers also could customize their packages.
