The Systemizing Solution Supplier of Cable & Connector
| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | LYCN |
| Certification: | ROHS/UL/SGS/REACH |
| Model Number: | 111 |
| Minimum Order Quantity: | 1000 PCS |
| Price: | USD |
| Packaging Details: | TRAY/TUBE |
| Delivery Time: | 25-35 Days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 8000000Kpcs |
| Current Rating: | 3.0 AMP | Contact Resistance: | 10mΩ Max |
|---|---|---|---|
| Dielectric Strength: | Min 1000V RMS | Mechanical Life: | Min 500 Cycles |
| Sleeve: | Brass CuZn36Pb3(C36000) | Contact Clip(4 Finger): | BeCu(C17200) |
| Highlight: | SMT Round PIN Header,3.0mm Round PIN Header,SMT IC Socket Connector |
||

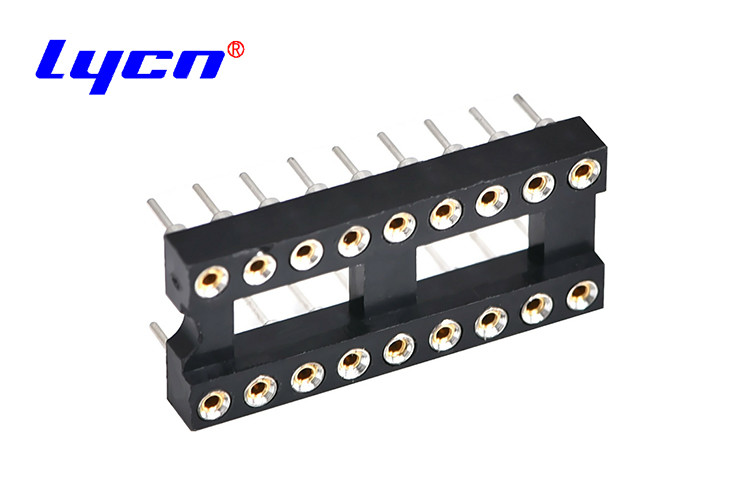

IC Socket SMT Round Pin Header Connector H=3.0 Pitch 2.54mm Product spacing
Products Application
Wide Application: All of our products can be widely used in electronics, electrical appliances, instrument connection device, which mainly plays the role of a current or signal transmission.
Printed circuit board connectors are connecting systems used to transfer signals or power supplies from one PCB to another, or from another source built into the device to or from the PCB. Since PCBS are not hard-wired to each other, they can be assembled later in the production process, providing a simple design method for manufacturing.
The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degrees increments:
Why choose us
1.Manufacture and trade integration,13 years export experience, 17 year manufacture experience;
2.One-stop shopping;
3.Competitive price and High quality;
Specification
| Insulator Material | PBT+30%GF(UL94V-0) |
| Contact Clip | Beryllium Copper (C17200) |
| Height | 3.0mm |
| Mating Pin | ∅0.38 To ∅0.64mm |
| Withdrawal Forces | 1 N Typ. |
| Insertion Forces | 2 N typ |
FAQ
1. How many shipping ways can provide for option?
We usually use air freight to ensure timeliness. If you have long-term cooperation with freight companies, you can provide your account number to us. If not, we can arrange shipment. We can provide TNT, DHL, FEDEX, EMS, UPS door to door service. Good packing ensures safe transportation. More than 15 stable cooperative freight forwarding companies in major ports in China, to ensure safety and quality service! In addition, we will be responsible for the loss caused by the products at the time of delivery.
2. Can you help us purchase other products in China?
Yes. We can provide this service! We have lots of customers need such service and we know many good suppliers in China. We hope we can use our own experiences and team to help you.
3. How can I be your agent or dealer?
Thanks for trusting LYCN ELECTRONIC products! Send us more information about you or your company as detailed as possible. We will review your information carefully and reply within 7 working days!
